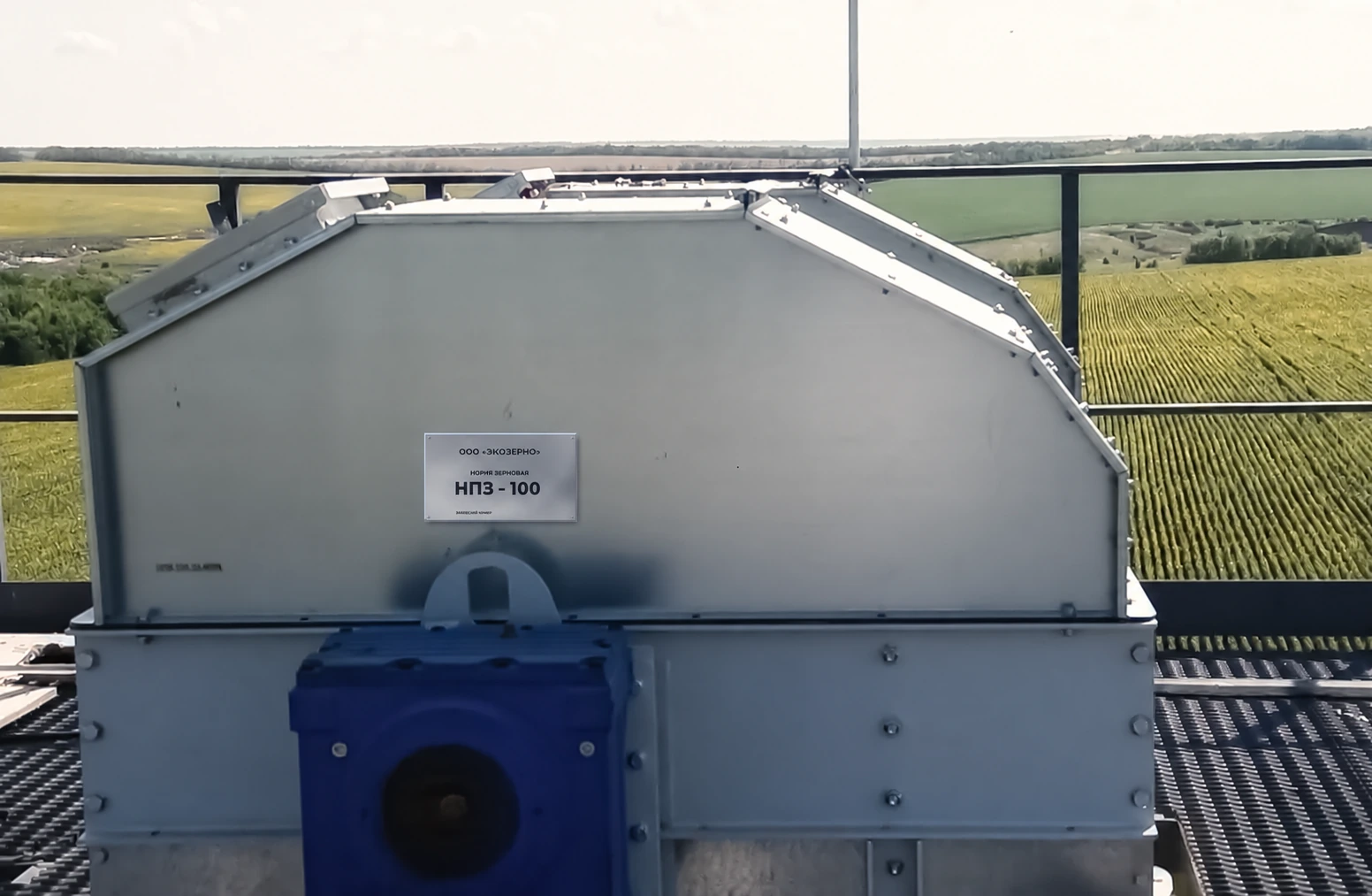

Head section
Galvanized or painted steel housing, reinforcements, removable top cover, product flow separator, discharge spout, reducer guard, service hatch and explosion relief device.
01 / 00
Grain transport equipment

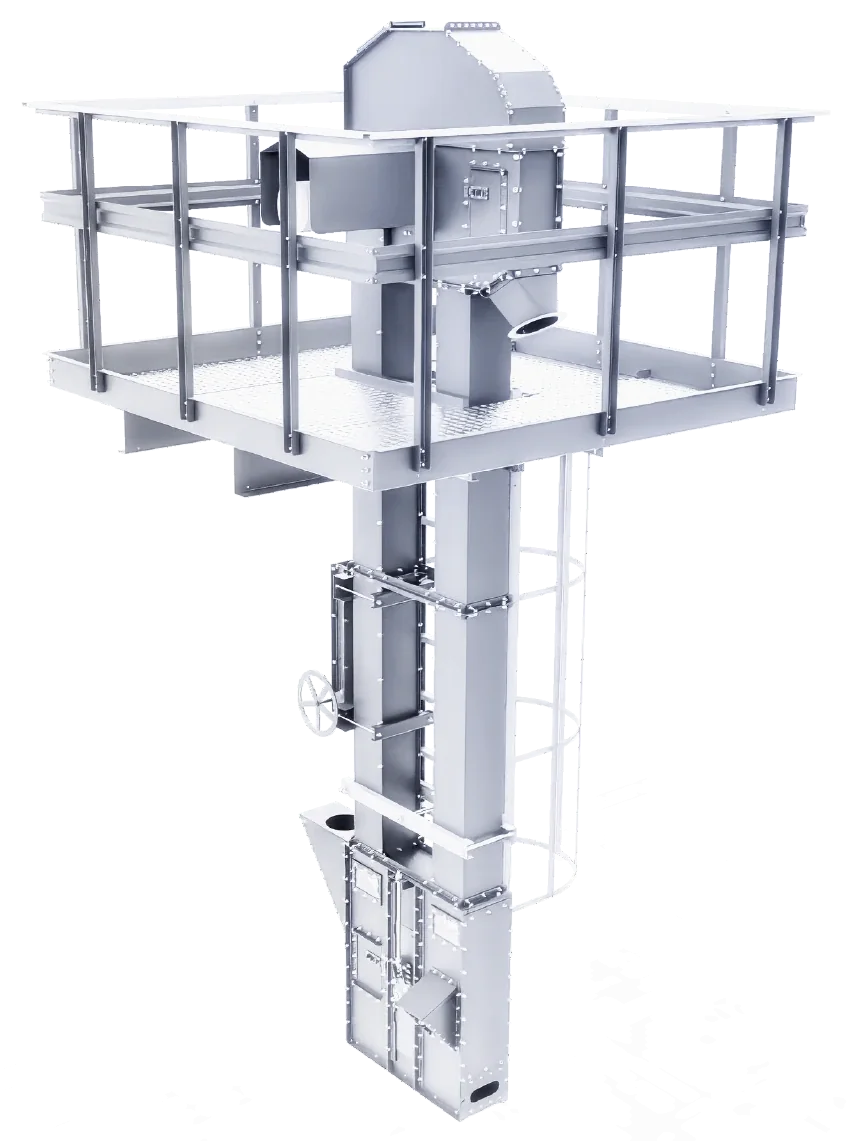

GBE

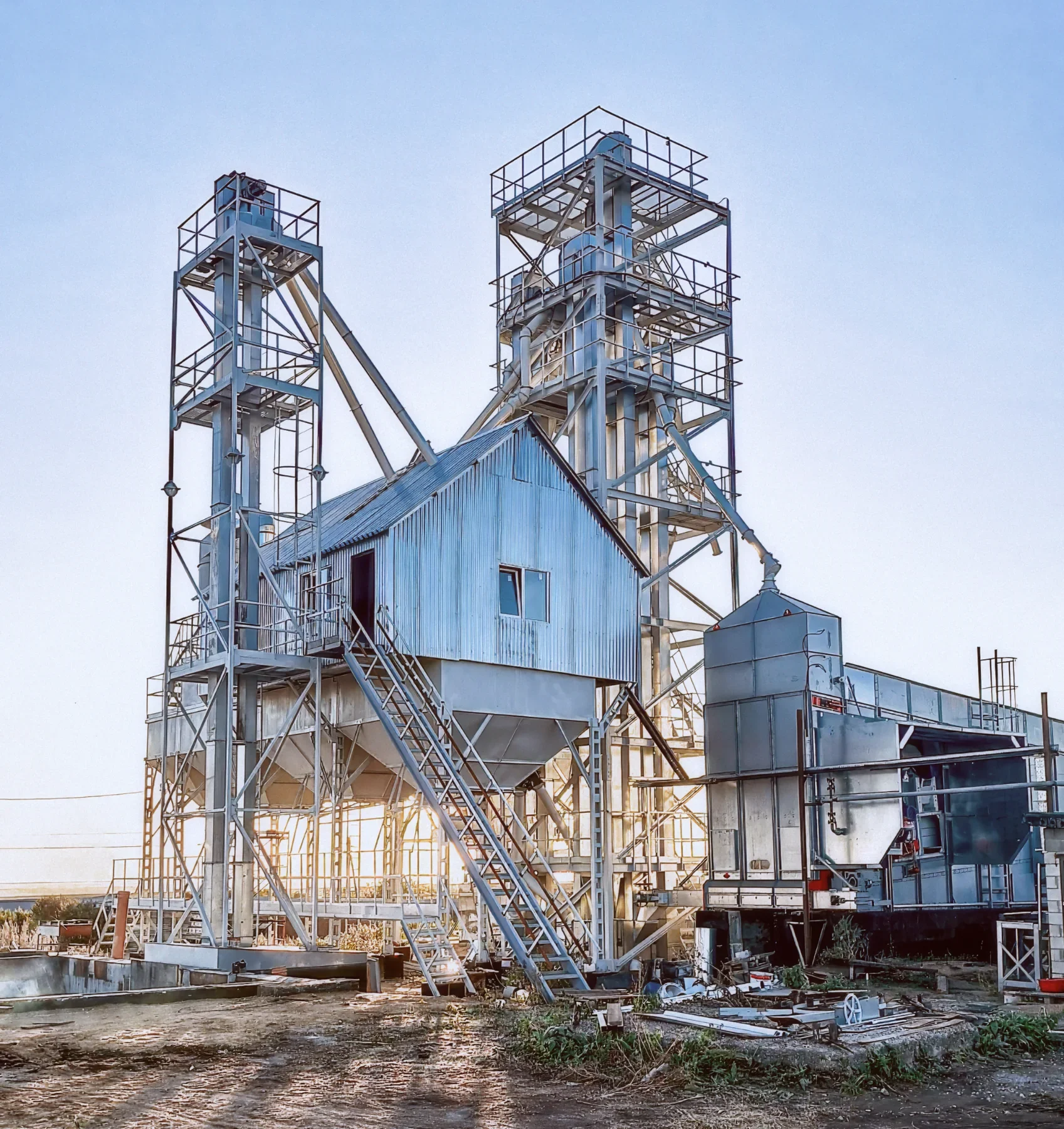

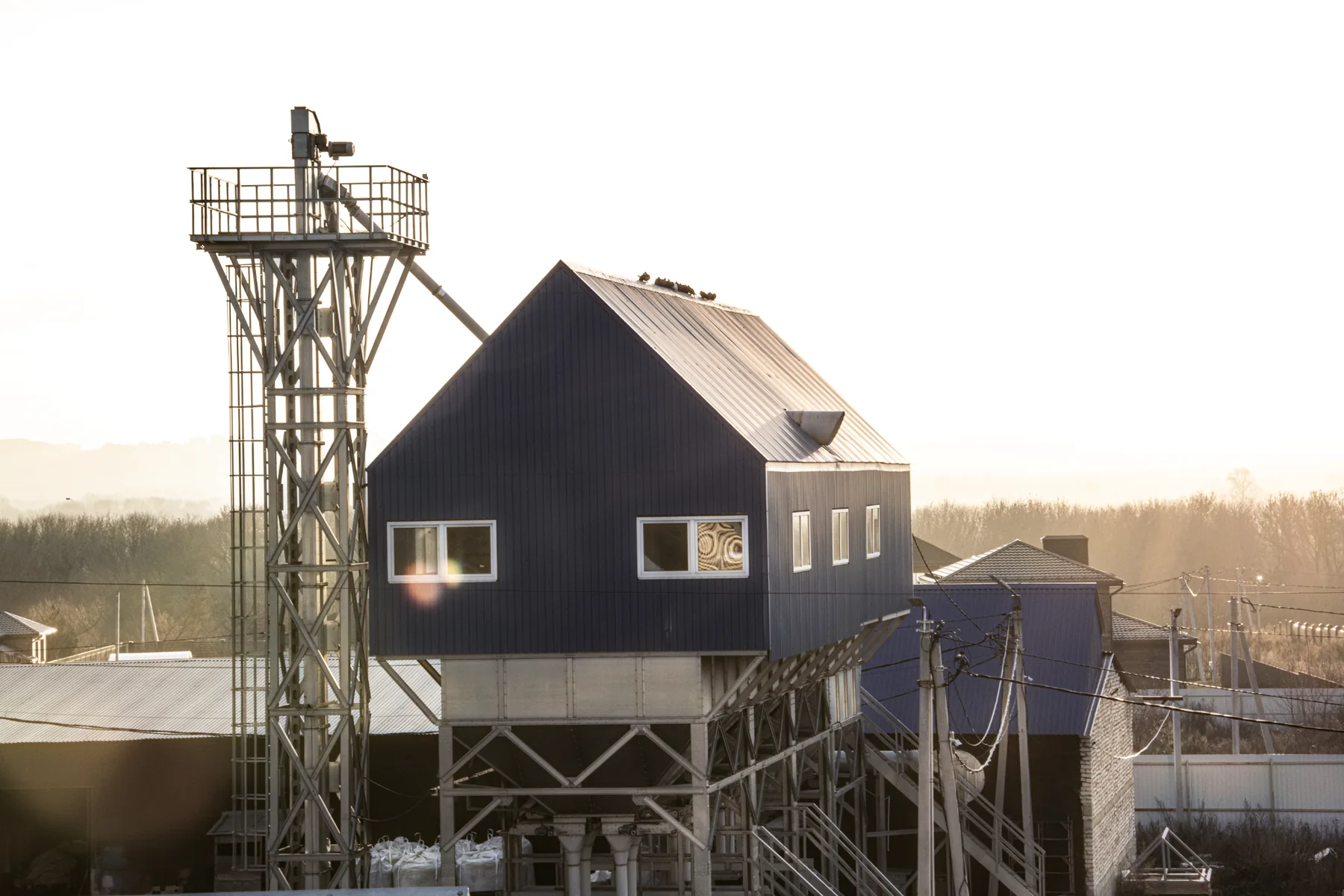

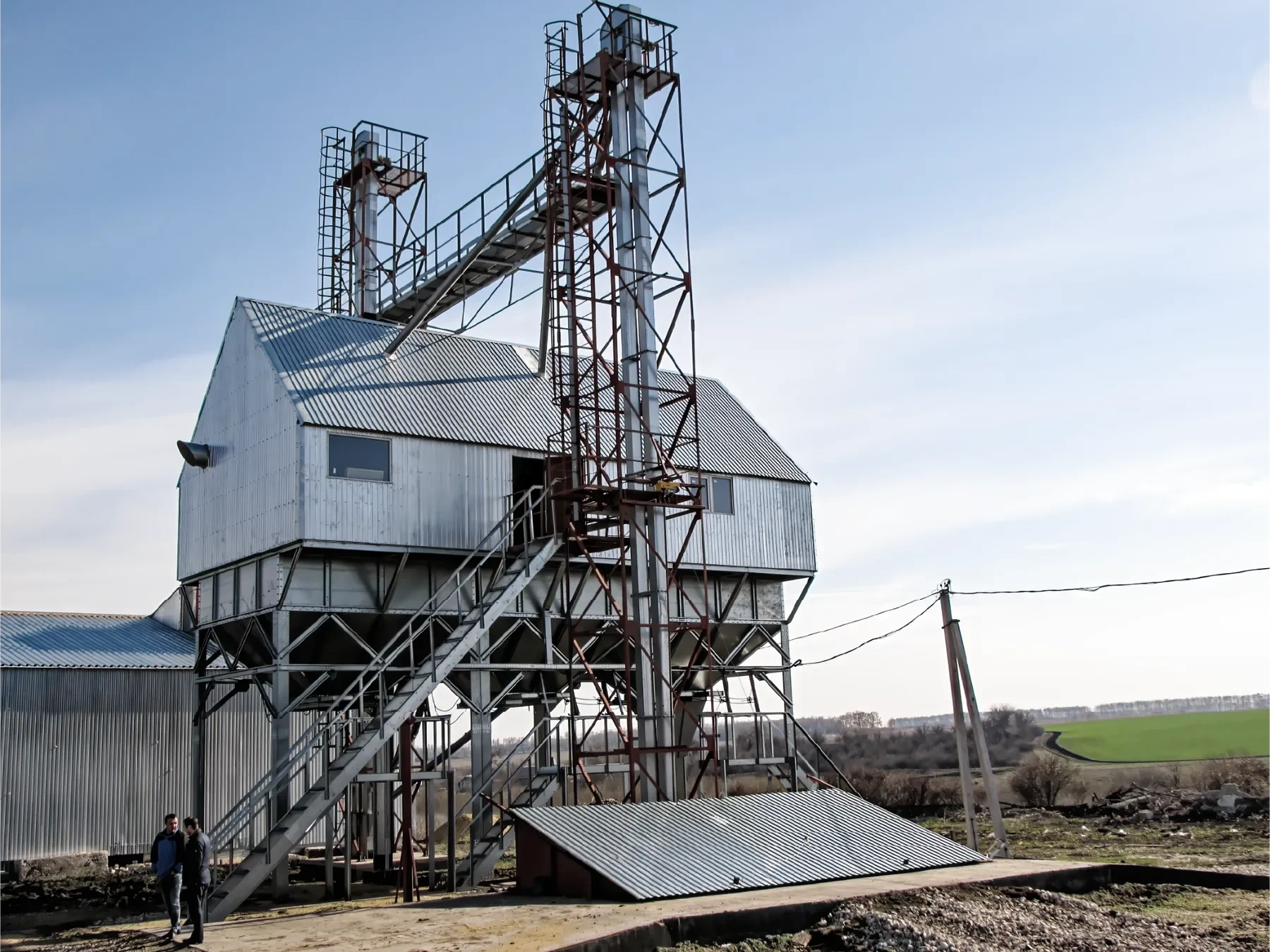

Bucket elevators for vertical grain handling between process levels. GBE elevators provide continuous product flow with gentle grain handling and are designed for modern grain cleaning, drying and storage complexes.
ModelGBE-M / GBE
Height, m4–23 / 4–50
Capacity, t/h25–50 / 25–200
Description
Bucket elevators are designed for vertical movement of bulk materials such as grain, legumes, pellets and other products. They provide accurate, continuous conveying and are used in process lines for grain processing, cleaning, storage and feed production.
The design is intended for straightforward integration with conveyors, receiving equipment, cleaners, dryers and storage systems. The configuration can be selected for the required process height and capacity.
Technical data
| Parameter | GBE-M | GBE |
|---|---|---|
| Height, m | 4–23 | 4–50 |
| Capacity, t/h | 25–50 | 25–200 |

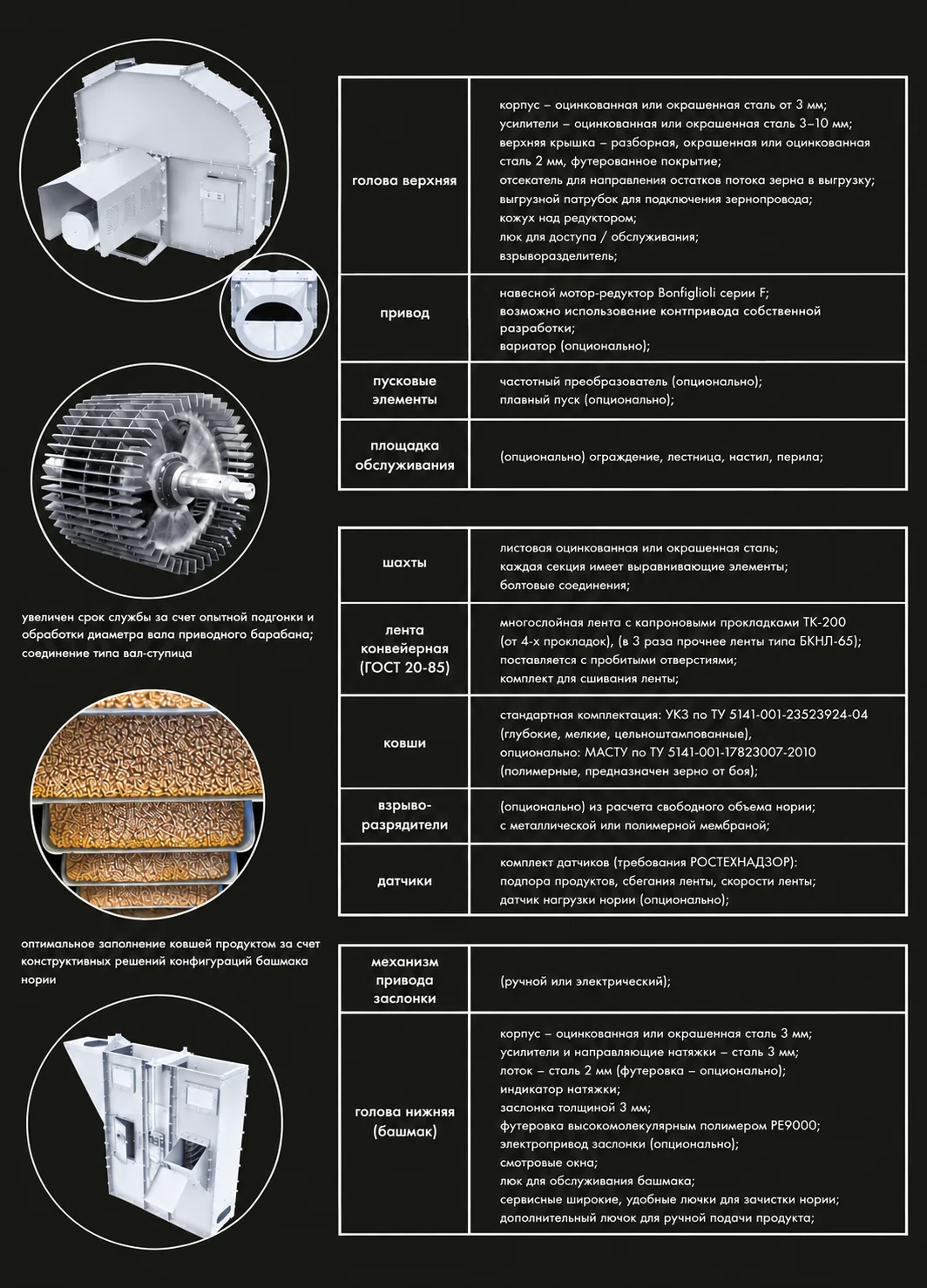

Construction and equipment
The elevator is assembled from modular units, simplifying transport, installation and future service work.
02

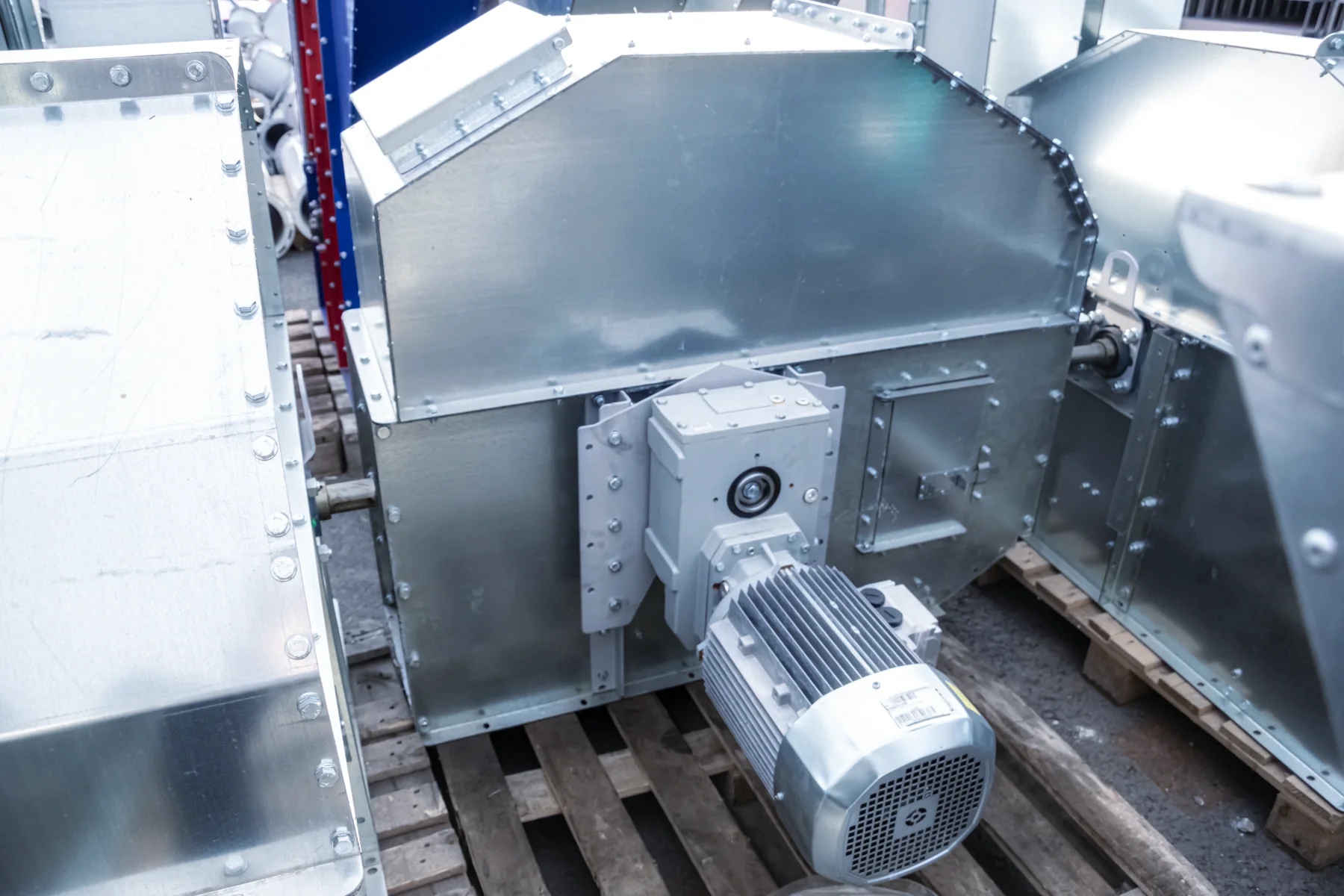

Drive
Bonfiglioli F-series geared motor. A proprietary counter-drive can be used; a variable-speed drive is available as an option.
03
Starting equipment
Frequency converter and soft starter can be supplied as options for controlled starting and operating-mode adjustment.
04
Shaft sections
Galvanized or painted sheet-steel sections with alignment elements and bolted connections.
05
Elevator belt
Multi-layer belt with TK-200 fabric carcass, from four plies, with punched holes for bucket attachment and a belt joining kit.
06
Buckets
Standard deep, shallow or stamped steel buckets. Polymer MASTU buckets can be supplied as an option for selected applications.
07
Sensors and protection
Sensors for product backup, belt misalignment and belt speed, plus an optional elevator load sensor. Explosion relief is selected according to the elevator free volume.
08

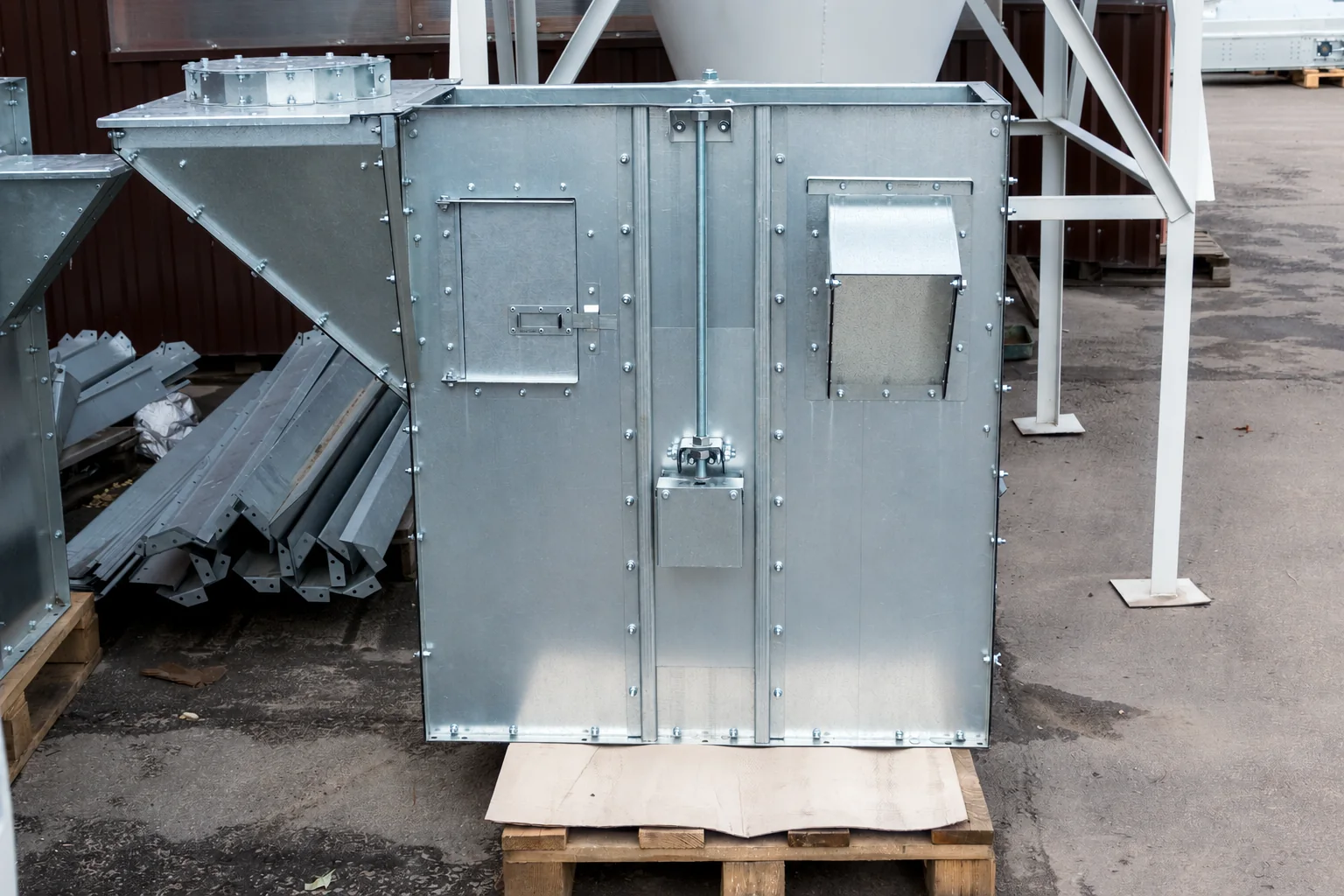

Boot section
Housing, tension guides, chute, tension indicator, gate, PE9000 wear lining, inspection windows, service hatches and additional access points.
Advantages
01
Modular construction
Simplifies transport and installation and allows individual assemblies to be improved or replaced without redesigning the whole machine.
02
Gentle product handling
Working geometry and belt speed can be selected for the product to reduce grain damage during vertical conveying.
03
Lugged drive drum
The drum improves belt grip and helps reduce belt slip and product build-up.
04
Easy service access
Accessible bearing and gearbox assemblies make inspection and routine maintenance faster.
05
Wear-resistant lining
Selected internal surfaces can use PE9000 wear-resistant polymer material to reduce grain damage and sticking.
