GPCM-50/100
A grain pre-cleaning machine for removing major impurities and preparing grain for further operations.
Specifications
| Model | GPCM-50 | GPCM-100 |
|---|---|---|
| Type | Stationary | |
| Construction | Galvanized steel / bolted assembly | |
| Drive | Electric | |
| Power supply | AC / 380 V / 50 Hz | |
| Capacity, t/h | 50 | 80 |
| Total installed power, kW | 7,5 | 11 |
| Air section drive, kW | 7,5 | 11 |
| Overall dimensions, mm (L × W × H) | 2 900 × 1 910 × 2 165 | |
| Mass with standard working parts, kg | 1 000 | 1 250 |
| Mass with full set of replaceable working parts, kg | 1 040 | 1 290 |
| Specific electricity consumption, kWh/t | 0,15 | 0,14 |
| Grain purity, % | 90 | |
| Grain loss to waste, % | 0,2 | |
| Grain breakage, % | 0,08 | |
| Foreign impurities after cleaning, % | 2,5 | |
| Grain impurities after cleaning, % | 5,0 | |
| Fan type | Diametrical fan, 12 blades | Diametrical fan, 24 blades |
| Air duct cross-section, mm | 1 250 × 240 ±2 | |
| Screen conveyor inclination, ° | 18±1 | |
| Working conveyor length, mm | 800±2 | |
| Working conveyor width, mm | 1 265±2 | |
| Screen conveyor mesh size, mm | 12×12; по требованию 10×10, 15×15 | |
Description
The GPCM is designed for efficient grain cleaning and removal of light impurities with controlled product feed.
- The working chamber guides the product through the cleaning and separation zone.
- Aspiration removes light impurities with an airflow.
- The electric drive provides stable operation of the working mechanisms.
Aspiration system
The aspiration system removes light impurities with an airflow and maintains stable cleaning conditions.
Receiving section
The receiving section distributes incoming product evenly and prepares it for further separation and cleaning.
Product separation
The working zone separates the product by physical properties and directs the fractions to the appropriate channels.
Reinforced side walls increase structural rigidity and equipment operating stability.
Advantages
Advantages
Designed for integration into a complete grain-processing line.
Design and operation
Integrated with the process equipment required by the project.
Equipment and connection set
The source documentation lists connection and piping components for the GPCM.
| SH-250×250SB — 250×250 spacer |
| SH-250×250.010SB — 250×250 spacer without cover |
| S6-250×250-250 — square-to-round adapter |
| SH-250×250.020SB — 250×250 spacer, 1 m |
| MPO50.07.000 — receiver |
| S6-300×300-200 — square-to-round adapter |

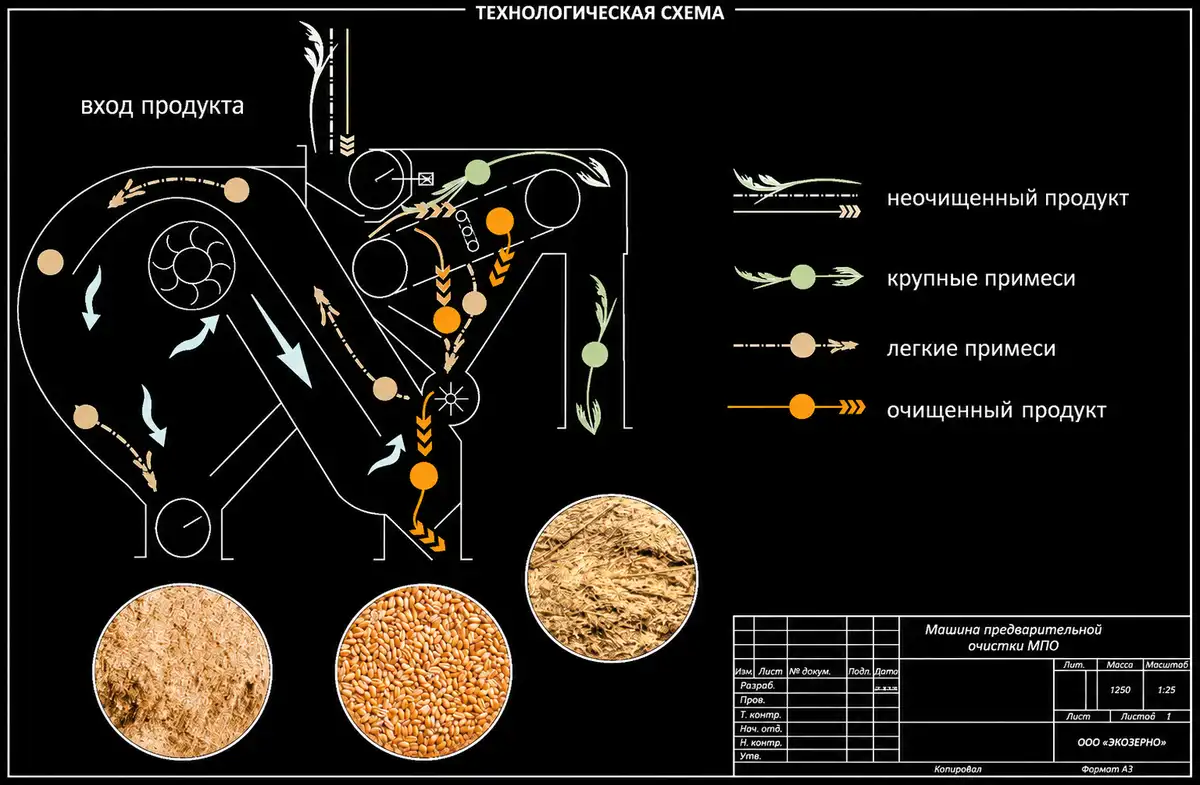

Process flow diagram
The process diagram shows product entry, movement of uncleaned material, separation of coarse and light impurities, and the outlet of cleaned product.
